Why Forsyth County Driveways Benefit From Mortar-Set Soldier Courses

Every Forsyth County paver driveway installer will tell you a sand-set soldier course is “standard.” They’re right — it is standard. It’s also the single line item that fails first on almost every driveway built on Cecil Piedmont clay, and the reason a perfectly laid field can look like a row of crooked teeth by year 4 or 5.

This post argues the opposite of what your bid sheet will tell you. On a 400-linear-foot driveway off Bethelview Road, Kelly Mill, or any ridgeline cul-de-sac north of Hwy 20, a mortar-set soldier course isn’t an upgrade. It’s the minimum. The math isn’t close. And once you understand what Cecil clay does to a sand-set edge over eleven summers of shrink-swell cycling, you stop calling mortar-set a premium and start calling it a prerequisite.

We install roughly 60 to 75 paver driveways per year across Forsyth County — from the 3-acre estates up near Coal Mountain down to the tighter south Forsyth subdivisions off GA-400’s exits 13 through 15. The failure pattern we see on driveways we didn’t build is almost always the same: a field that’s still reasonably flat, coupled with a soldier course that’s walked sideways, tipped, and opened up half-inch joints the homeowner can’t figure out how to close.

What Cecil Clay Actually Does Under a Driveway Edge

Forsyth County soils are dominated by the Cecil series — a red-to-orange Piedmont clay with a plasticity index that swings hard between summer drought and Lake Lanier-fed humidity. The USDA soil survey pegs most Forsyth residential lots at 22 to 34 on the PI scale. Anything above 20 is considered moderately expansive. Above 30, you’re in territory where concrete slabs crack on a predictable 8-to-12-year clock.

Here’s what that means at the edge of a driveway. A sand-set soldier course relies on three things to hold its line: a compacted base underneath, an edge restraint pinned into that base with 10-inch spikes, and polymeric sand in the joints. All three assume the soil beneath isn’t moving. In Cecil clay, the soil is always moving. It swells up roughly 3/8 to 5/8 inch in peak August humidity, then contracts again during a dry December. That cycle doesn’t happen once. It happens every year. For thirty years.

Each swell-contract cycle does two things to a sand-set soldier course. It levers the edge restraint spike by the exact distance the clay heaves, loosening the pin. And it opens a hairline gap between the soldier and the field pavers on the contraction side. Water infiltrates that gap. The polymeric sand — which the spec sheet says lasts 10 to 15 years — actually washes out by year 6 to 8 in a driveway with any meaningful grade. Once sand is gone, the soldier is free to shift laterally. We measure it on failed jobs: 1/8 to 1/4 inch per year of lateral migration on south Forsyth driveways, faster on the north-county ridgelines where the clay is rockier and holds moisture unevenly.

So the soldier course isn’t a decorative border. It’s the structural perimeter that has to absorb thirty years of clay movement while keeping the field locked. Sand-set, it can’t. Mortar-set, it can.

The Real Cost Delta — and Why It Looks Big Until You Do the Math

Let’s put actual Forsyth County numbers on the page. A 2026 sand-set soldier course runs $6 to $9 per linear foot installed in our market. Mortar-set, properly built on a poured concrete haunch with a troweled mortar bed, runs $12 to $18 per linear foot. On an average Forsyth driveway — call it 18 feet wide, 22 feet deep at the apron, flared wings, a turnaround loop, for a total perimeter of 400 linear feet — that’s a delta of $2,400 to $3,600 at time of install.

That’s the number every contractor hands you. That’s the number that makes homeowners say “let’s just go sand-set, we’ll redo it later if we need to.” Here’s the number they don’t hand you.

A failed soldier course on a 400-LF driveway doesn’t get patched. It gets rebuilt. The pavers have to come up (you can reuse roughly 80% of them if they haven’t been salt-damaged), a new concrete haunch gets poured, new mortar goes in, and new polymeric sand gets swept into the re-laid field at the transition. In Forsyth County, that’s a $6,000 to $12,000 job, depending on driveway geometry, whether the field also needs re-leveling, and how far the soldier shift has stressed the first two rows of field pavers.

The timing matters. Mortar-set soldier courses we installed in 2014 on a Shady Grove Road driveway are going into their twelfth winter still tight. Sand-set soldier courses we’ve been called to repair almost always fail between year 7 and year 9. So the sand-set homeowner saves $2,400–$3,600 at install, then spends $6,000–$12,000 at year 8, then likely does it again at year 18.

Compare that to the mortar-set scenario: one install, 25+ years of structural hold, and a refresh of polymeric sand in the field joints every 8 to 10 years. That refresh is a $400 to $700 service call, not a rebuild.

How a Mortar-Set Soldier Course Is Actually Built

Not all mortar-set edges are the same. The difference between a 25-year mortar-set soldier and a 6-year one is the concrete underneath. Here’s how Primetime Pools GA builds them on every Forsyth County paver driveway:

First, we dig the soldier trench 6 inches deeper than the field base. For a standard 10-inch compacted GAB driveway base, that means the soldier trench bottoms at 16 inches below finished grade. Every inch of that extra depth gets filled with 3,500-PSI concrete, poured in place, troweled flat to form a continuous concrete haunch under the entire soldier line. That haunch is what anchors the soldier against lateral clay movement for the next three decades.

Second, we bond the pavers to the concrete with a Type-S mortar mix — not thinset, not masonry adhesive. Type-S has a 1,800-PSI compressive strength and the flexibility to take small movements without cracking. The mortar bed is half an inch thick, troweled on just before each paver is placed. The soldier pavers get butt-jointed with a 1/8-inch joint and back-buttered on the field-facing side so the bond is three-dimensional, not just a bottom bed.

Third — and this is the detail no online spec sheet mentions — the soldier course is installed before the field, not after. Setting the soldier first lets us check the line, the grade, and the perimeter elevation against the driveway’s actual crown before a single field paver goes down. If a field goes in first, the soldier is chasing it. If the soldier goes in first, the field is referencing it. The line stays straight.

Why Forsyth County Specifically — The Geography Tax

Forsyth is the fastest-growing county in Georgia, with roughly 260,000 residents across 247 square miles and a planning department that approves 200+ pool permits per year alone. That growth has been a boon for builders and a disaster for soil consistency. Subdivisions off Post Road, Kelly Mill, Bethelview, and the Shoal Creek corridor were graded, backfilled, and built out fast — often on disturbed cut-and-fill that didn’t have five years to settle before the house footing went in.

That’s relevant to driveways because the first 18 inches of soil under most Forsyth driveways isn’t native Cecil clay. It’s engineered fill that sits on top of native Cecil — a sandwich that behaves worse than either layer would alone. The fill drains differently than the clay beneath it. Water that moves through the fill hits the clay plane and runs laterally along that interface, saturating the base of the driveway edge every time it rains.

In Coal Mountain and the Ducktown ridgelines up north, the problem is different. The clay is rockier, more variable, and often shallower over weathered saprolite. Soldier courses on those lots fail in patches, not uniformly — one 20-foot section shifts, another stays tight. Mortar-set solves both failure modes because the concrete haunch transfers load continuously along the entire perimeter instead of relying on individual spike anchorage.

Zip-code-level: the problem is worst in zip 30028 (north Forsyth, longer driveways on bigger lots, more grade) and 30040 (west of Cumming, the highest clay-PI readings in the county). The 30041 south Forsyth zip has slightly better drainage because the topography is gentler, but the subdivision density means shorter driveways, which means any shift is proportionally more visible.

The geography tax on Forsyth paver driveways is real, and it’s not a tax the field pavers pay. They pay it at the edge.

What Sand-Set Failure Looks Like in Real Forsyth Driveways

We catalogue failure on driveways we’re called to repair because the patterns repeat so cleanly. Here’s what we see, in order of visibility:

Year 2–3: The polymeric sand in the joints between soldier and field starts to show hairline washout lines. Most homeowners don’t notice. If you walk the edge on a wet day you’ll see slightly discolored sand tracks where water is moving through the joint.

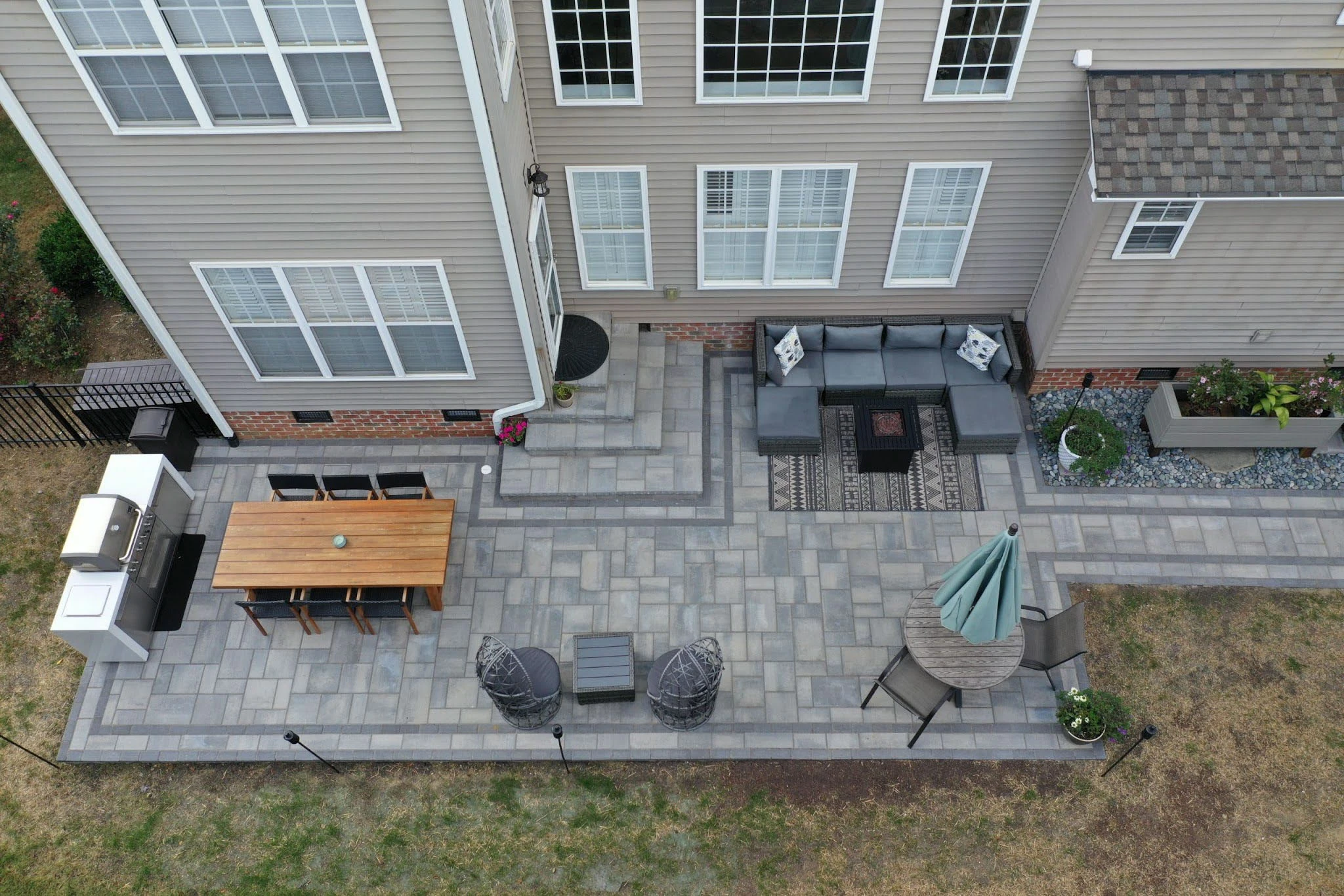

Year 4–5: The soldier course visibly tips outward by 1 to 3 degrees at the driveway apron, which is where the lateral load is highest. On the aerial shots we take for our own records, you can see the soldier line start to waver instead of run straight.

Year 6–8: Field pavers adjacent to the soldier start to open 3/16-inch joints. The homeowner calls someone to “re-sand the driveway.” That helps for about 6 months. The joints open again the next spring.

Year 8–10: Soldier course has walked 3/4 inch to 1-1/4 inch off the original line. Edge restraint is loose or exposed. Field pavers at the first two courses are rocking under car tire load. At this stage the fix stops being cosmetic and becomes structural.

Year 10+: The driveway reads as “failing” to anyone who looks at it. Resale value starts to reflect the condition, which in north Forsyth’s $800K-to-$1.4M luxury estate market is a real number.

The Two Cases Where Sand-Set Is Actually Fine

We’re contractors, not zealots. Sand-set soldier courses are genuinely fine on two Forsyth County applications: walkways under 30 linear feet with minimal grade change, and pool deck perimeters where the pool beam itself provides structural edge restraint. Neither of those is a driveway. A driveway has vehicle loads, long perimeters, grade, and 30 years of shrink-swell ahead of it. Sand-set is the wrong call every time.

Questions Forsyth County Homeowners Ask Before Signing

“My neighbor’s sand-set driveway is eight years old and still looks great. Why?”

Three possibilities. One: it was built on an unusually stable section of Cecil clay with good natural drainage, which does exist in pockets — we see it occasionally along the west side of Post Road and in parts of Shiloh. Two: the driveway is short enough (under 150 LF perimeter) and on a flat enough grade that the failure mode hasn’t triggered yet. Three: you’re looking at year 8 right before failure — call us back at year 10.

“Can we mortar-set just the high-load sections and sand-set the rest?”

Technically yes. Practically no. The failure will migrate to the transition point between mortar and sand, which becomes a hinge line that flexes differently on each side. We’ve seen that detail fail faster than a straight sand-set. If you mortar-set, mortar-set continuously around the entire perimeter.

“Does HOA architectural review care about mortar-set vs sand-set?”

Almost every Forsyth subdivision has an HOA — density in the county is roughly one HOA per 85 households. Most don’t specify the soldier detail in their architectural guidelines because they don’t know there is one. Some of the higher-end HOAs (we’ve worked through architectural review in Big Creek and Brookwood) do specify “mortar-set perimeter” as a condition for paver driveway approval. Worth asking before the bid.

“Will mortar-set crack if I need to dig up a utility line?”

Yes. That’s the one real downside. A mortar-set soldier has to be chiseled out and rebuilt over any utility trench that crosses it. Budget about $150 per linear foot for the rebuild section. The good news: Forsyth County utility placements almost always route outside the driveway perimeter, so this scenario is rare on new builds. On retrofits to existing driveways, we pre-verify utility routes with 811 before committing to mortar-set.

“What paver brands actually hold up in Cecil clay over 25 years?”

The soldier and field pavers don’t care about the clay — the bond system does. That said, we spec Techo-Bloc Blu 60 or Belgard Cambridge Cobble for the majority of Forsyth driveway work. Both have the aggregate density and freeze-thaw rating (Zone 8a gets 22 freeze events per year) to handle the climate without surface spalling. For the soldier specifically, we often step up to a contrasting charcoal or onyx color so the line is visible, which makes any future shift obvious at a glance.

The 30-Year Spec We Put in Every Forsyth Paver Driveway Contract

If you’re comparing bids from three contractors right now, here are the line items to require in writing. A good paver driveway in Forsyth County is built to this spec — not a shorter one.

• Excavation depth: 16 inches for field, 22 inches for soldier trench.
• Geotextile: Non-woven fabric over subgrade, full coverage, 12-inch overlap at seams.
• Base material: 10-inch compacted GAB (granular aggregate base) in 2-inch lifts, 95% Proctor compaction verified.
• Soldier concrete haunch: 3,500-PSI continuous pour, 6 inches below field base, rebar-tied on longer runs.
• Soldier bond: Type-S mortar, 1/2-inch bed, back-buttered at field joint.
• Field sand bed: 1-inch concrete sand, screeded flat.
• Field pavers: Techo-Bloc Blu 60 or Belgard Cambridge Cobble, 2-3/8 inch thickness minimum for vehicle load.
• Joint sand: Polymeric sand (SEK-SureBond or equivalent), broom-swept twice, water-set.
• Warranty: Minimum 10 years on soldier course alignment, 5 years on field settlement.

That spec costs more than the cheapest Forsyth bid you’ll get. It also lasts roughly three times longer. Amortized across 25 years, the per-year cost is always lower than the cheap bid rebuilt twice.

Forsyth County has some of the longest-lived paver driveways in north Georgia because a handful of installers learned Cecil clay’s behavior the hard way — by rebuilding their own work at year 8. The ones still in business specified mortar-set soldier courses a decade ago. The ones who aren’t, didn’t. Take that as data, not opinion.
